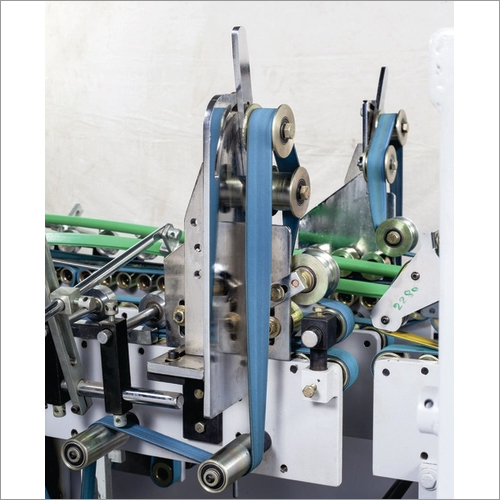

Carton Folder Gluer

Carton Folder Gluer
Carton Folder Gluer
Product Code : 02
Brand Name : BOXTECH BANGALORE
Product Description

Carton Folder Gluer without Prefold  (Two fold)

Carton Folder Gluer without Prefoldis an basic model folder gluer for straight line cartons, available in all sizes

  • The basic formation of pasting box is paper-feeding
  • Automatic friction feeder which enables continuous paper-feeding
  • One-side pasting, folding method: Glue is applied immediately after the carton leaves the feeder. The line passes through gluing section and then second and fourth crease folding line is a must have straight line boxes and gets stacked & carried into pressure delivery section for pressing of the cartons which is ready for packing. Suitable for convertors with  Less floor space. Economical and more productivity. Quick set up.
The specifications are:
  • Maximum line speed: 250m/min
  • Applicable paper: 280-450g/m2 cardboard
  • The basic formation of pasting box-One-side pasting
  • Method of paper-feeding: Automatic and continuous Friction feeding
  • Applied adhesive: Solute type water based glue
  • Power needed: 3.7Kw, 400v
  • Weight: 3000 Kg
Note: When the paper quality and die tangent line of the paper-box are good, the maximum line speed can be reached

Standard Accessories

  • Both upper, lower conveyors are belt driven and upper conveyors are designed for quick lift up
  • All sealed bearings are used which reduce jams due to paper dust
  • Minimum maintenance and quick make ready
  • Adjustable Pressing units
  • AC motors with control drives
Special Additional Accessories
  • Feeder AutoClutch
  • Electronic Batch Counter with Photo sensor and electro mechanical ejector
  • Extended Pressing unit for quick dry and online packing
